John Deere 770G 770GP 772G 772GP Motor Grader Service Repair Manual
TM14245X19
770G, 770GP, 772G and 772GP Motor Graders
John Deere machines are available in different machine configurations based on the various markets into which they are sold. Different supporting manuals exist for different machine configurations.
When necessary, product identification numbers (PINs) are listed on the front covers of the manuals. These numbers are used to identify the correct supporting manual for the machine.
This manual is written for an experienced technician. Essential tools required in performing certain service work are identified in this manual and are recommended for use.
Live with safety: Read the safety messages in the introduction of this manual and the cautions presented throughout the text of the manual.
This is the safety-alert symbol. When you see this symbol on the machine or in this manual, be alert to the potential for personal injury.
Technical manuals are divided in two parts: repair and operation and tests. Repair sections tell how to repair the components.
Operation and tests sections help you identify the majority of routine failures quickly.
Information is organized in groups for the various components requiring service instruction. At the beginning of each group are summary listings of all applicable essential tools, service equipment and tools, other materials needed to do the job, service parts kits, specifications, wear tolerances, and torque values.

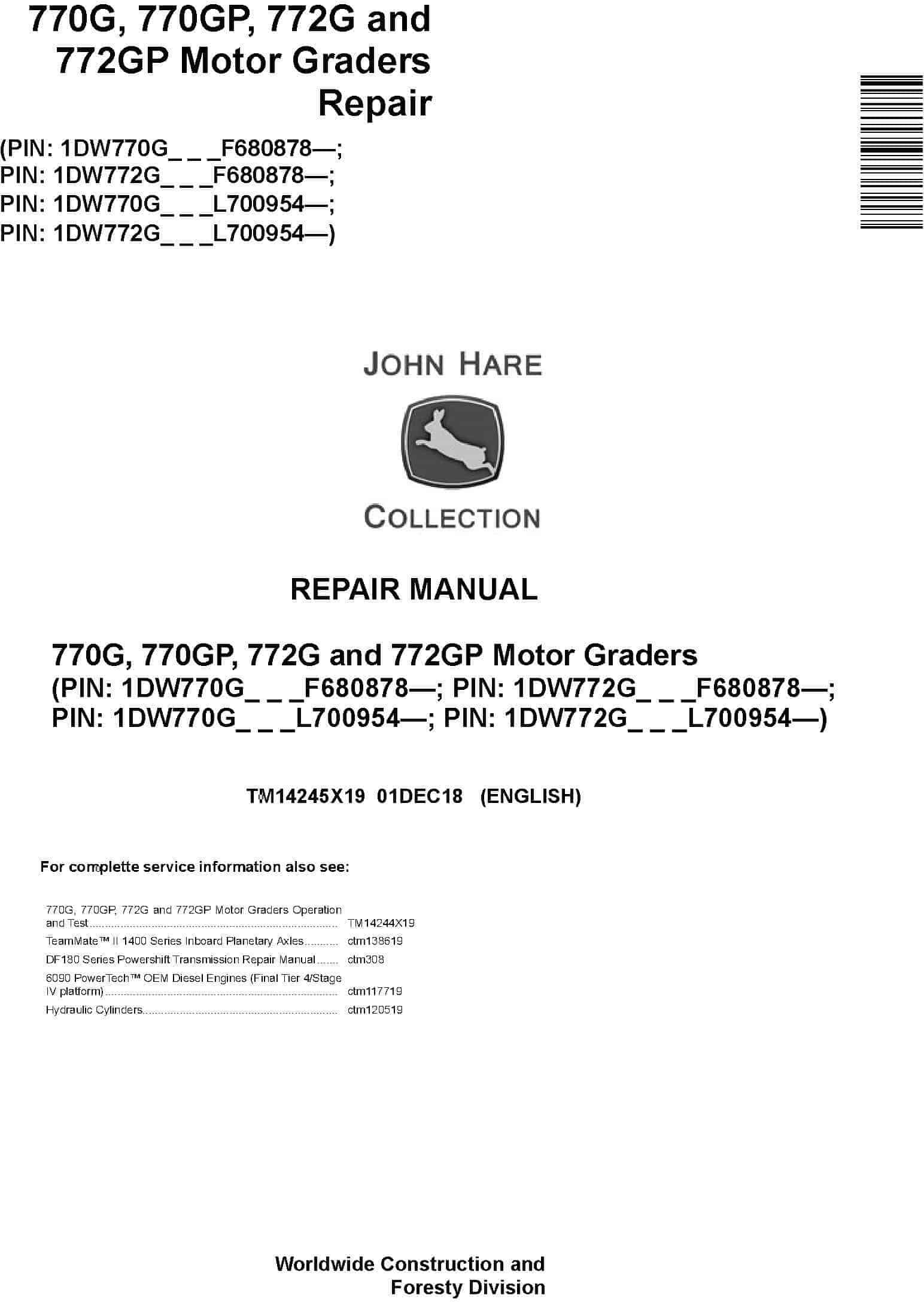

REPAIR MANUAL
770G, 770GP, 772G and 772GP Motor Graders
(PIN: 1DW770G_ _ F680878—; PIN: 1DW772G _F680878—;PIN: 1DW770G _ L700954—; PIN:1DW772G _ _L700954—)
For complette service information also see:
770G, 770GP, 772G and 772GP Motor Graders Operation
and Test..TM14244X19
TeamMate™ II 1400 Series Inboard Planetary Axles..ctm138619
DF180 Series Powershift Transmission Repair Manual..ctm308
6090 PowerTech™ OEM Diesel Engines (Final Tier 4/Stage
IV platform)…ctm117719
Hydraulic Cylinders.ctm120519
John Deere 770G 770GP 772G 772GP Motor Grader Service Repair Manual TM14245X19
Technical Manuals are concise guides for specific machines. They are on-the-job guides containing only the vital information
needed for diagnosis, analysis, testing, and repair.
Fundamental service information is available from other sources covering basic theory of operation, fundamentals of
troubleshooting, general maintenance, and basic type of failures and their causes.
John Deere 770G 770GP 772G 772GP Motor Grader Service Repair Manual
