John Deere PowerTech 6.8L 8.1L Diesel Engines CTM134 Manual

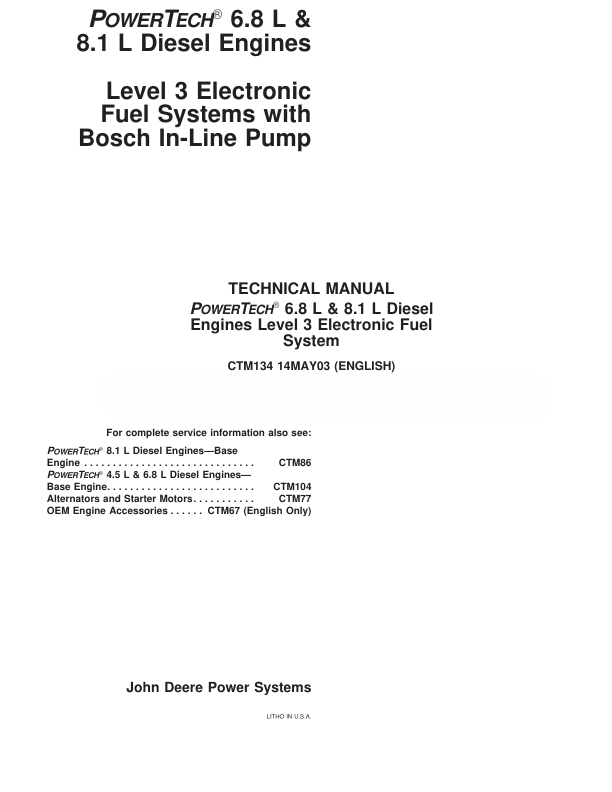

John Deere POWERTECH 6.8 L & 8.1 L Diesel Engines Level 3 Electronic Fuel Systems with Bosch In-Line Pump Technical Manual (CTM134)
Manual Included:
Technical Manual: 490 Pages (CTM134)
Specifications:
Brand: John Deere
Model: POWERTECH 6.8 L & 8.1 L Diesel Engines (Level 3 with Bosch In-Line Pump)
Serial Number: All
Type: Diesel Engines (Electronic Fuel Systems)
Manuals: Technical Manual
Publication Numbers: CTM134
Language: English
Format: PDF
Complete Technical Manual for John Deere POWERTECH 6.8 L & 8.1 L Diesel Engines – Level 3 Electronic Fuel Systems (CTM134)
The john deere 6.8l engine and its larger 8.1L counterpart share the Level 3 electronic fuel system architecture featuring the Bosch in-line injection pump. This technical manual (CTM134) provides factory-authorized diagnostics, adjustment procedures, and component specifications for both engine platforms. Technicians working on agricultural, construction, or industrial equipment will find essential information for maintaining these reliable powerplants.
Technical Specifications – John Deere 6.8 Liter Engine and 8.1L Platform
The john deere 6.8 liter engine produces between 125 and 200 horsepower depending on configuration, while the 8.1L delivers 175 to 250 horsepower. The 6.8l john deere engine features a bore of 106 mm and stroke of 127 mm, with displacement of 6.8 liters. Operators searching for 6.8 john deere engine details will find compression ratios, firing orders, and fuel system pressure specifications within CTM134. The john deere 6.8 l engine specs include injection timing values, valve clearance measurements, and governor adjustment parameters.
Bosch In-Line Pump Operation and Adjustment
The Level 3 electronic fuel system uses a Bosch in-line injection pump with electronic governor control. For a john deere 6.8l engine experiencing surging or power loss, this manual provides pump timing procedures, spill port measurements, and electronic actuator testing. Technicians servicing a 6.8 liter john deere engine will find detailed diagrams of the pump linkage, fuel shutoff solenoid, and cold start advance mechanism.
Electronic Diagnostics and Sensor Specifications
The Level 3 system incorporates throttle position sensors, engine speed sensors, and coolant temperature sensors. The john deere 6.8 l engine specs section includes sensor resistance values, voltage outputs, and connector pin-outs. A 6.8l john deere engine with diagnostic trouble codes can be fully analyzed using the procedures in CTM134. The manual also covers ECM calibration, fuel rate adjustments, and idle speed programming.
