4600B – Volvo Bm Wheel Loader Service PDF Repair Manual

$55.00

Category: Volvo

Description
Reviews (0)

Volvo Bm 4600b Wheel Loader Service And Repair Manual

Volvo

Introduction
Manual Overview
Safety Precautions
Power Transmission System
Power Transmission Overview
Torque Converter
Transmission and Dropproof
Gear Shifting System
General Principles
Manual Gear Shifting
Automatic Power Shift (APS)
Gear Shift Points
Control Systems
Selector Control Overview
Signal Wiring Diagram
Dual Control System
Downshifting Switch and Engine Braking
Gear Shifting, Signal to ECU
Wiring Diagrams
Function of Selector Control Signals
Gear Engagement Logic
Operating Procedures
Manual Gear Shifting
Automatic Mode Operation
Changing Travel Directions
Kick-Down Function
Special Features
Over-Speeding Protection
Power Reduction during Direction Changes
Electronic Control and ECU Modules
Service and Maintenance
Disconnection and Connection Procedures
Troubleshooting Guide
Relays, Fuses, and Wiring Checks
Appendices
Wiring Diagrams
Circuit Diagrams
Spare Parts List

Volvo BM 4600B. • Load-Sensing … New Cab with until table steering wheel. • Asbestos free brake … 4600B brochure with specifications.

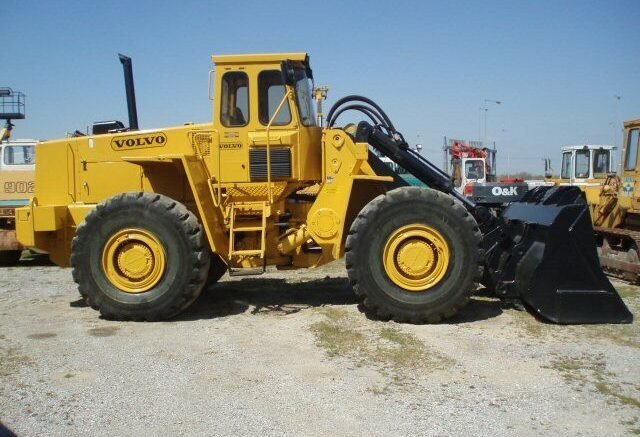

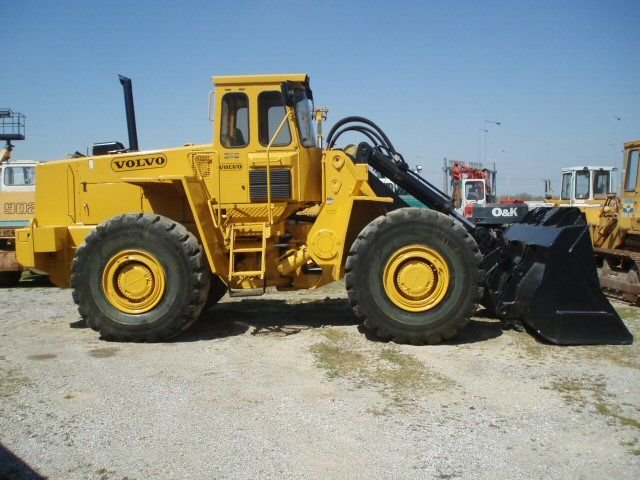

Volvo BM 4600b
4600b was an articulated wheel loader with power shift transmission, rugged axles with worldly center reductions, dual brake system with disc brakes as well as a differetal lock with 100% lock-up on the front axle.

Volvo Bm 4600b Wheel Loader Service And Repair Manual

The 4600b was modified and upgraded during the manufacturing years.

Volvo BM 4600B
– Load-Sensing hydrostatic steering system.
– Volvo HT200 Transmission.
– Volvo AH70 axles Front and Back.
– New Cab with tiltable wheel.
– Asbestosfree brake linings 1985.

4600B1986 requirements
EngineVolvo TD 101 G.
Engine output (SAE), kW (hp)194 (264).
Suggestion. Tons (straight/full turn), kg15 300/ 13 800.
Container quantity, m33,8– 4,5.
Tires26.5 R25.
Operating weight, kg21 100.
Production year1984– 1986.
