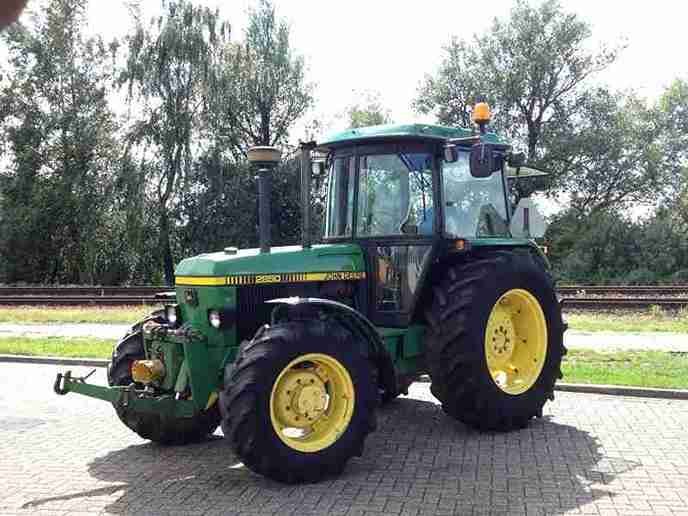

John Deere 2650n 2850 Tractors Service Manual

John Deere 2650n 2850 Tractors Service Manual
Tulare, CA, USA – February 11, 2011: A row of John Deere farm tractors wait to be sold to the highest bidder at a Ritchie Bros Auction.

John Deere 2650n 2850 Tractors Service Manual

John Deere 2250, 2450, 2650, 2650n, 2850 Tractors Service Technical Manual tm4440

TM4440

The technical guide includes unique carrier statistics, unique commands for restore and maintenance, wiring electric and hydraulic diagrams, carrier and different extra statistics this is supplied particularly for tractors John Deere 2250, 2450, 2650, 2650n, 2850.

The technical guide is designed to paintings on a private pc with OS – Windows and Mac. The technical guide is available in PDF and consists pages, which might be printable. To view the statistics you need this system hooked up Adobe Reader.

We advocate applying Adobe PDF Reader, to make sure all images/photos will show correctly.

The John Deere technical guide is a device of help in the carrier and restoration of tractors John Deere, which lets in to stumble on and clear up issues springing up and uncertainties.

Contents:

Models Covered:

John Deere 2250 Tractors
John Deere 2450 Tractors
John Deere 2650 Tractors
John Deere 2650N Tractors
John Deere 2850 Tractors

John Deere 2650n 2850 Tractors Service Manual
John Deere 2650n 2850 Tractors Service Manual
Free shipping by email
Price: $59.99

John Deere 2650n 2850 Tractors Service Manual

Service Technical Manual Covers:

SECTION 05 – SAFETY
SECTION 10 – GENERAL
Group 05 – Specifications
Group 10 – Predelivery, Delivery and After-sales Inspections
Group 15 – Lubrication and Service
Group 20 – Tune-Up
Group 25 – Tractor Separation

SECTION 20 – ENGINE

Group 05 – Radiator, Viscous Fan Drive and Fan
SECTION 30 – FUEL AND AIR INTAKE SYSTEM
Group 05 – Fuel Tank, Auxiliary Tank and Water Trap
Group 10 – Cold Weather Starting Aids
Group 15 – Speed Control Linkage
Group 20 – Air Cleaner

SECTION 40 – ELECTRICAL SYSTEM

Group 05 – Wiring Harnesses
Group 10 – Controls and Instruments (with SG2 cab)
Group 15 – Controls and Instruments (without cab)
Group 20 – Controls and Instruments (with MC1 cab)
Group 21 – Adjusting Digital Speed-Hour-Meter
Group 25 – Lighting System
Group 30 – Starting Motor
Group 35 – Alternator

SECTION 50 – POWER TRAIN

Group 05 – Clutch Operating Systems
Group 10 – Single-Stage Engine Clutch
Group 15 – Dual-Stage Engine Clutch
Group 20 – Hi-Lo Shift Unit
Group 25 – Creeper Transmission
Group 26 – Hydrostatic Creeper Transmission
Group 30 – Transmission – Console Shift
Group 35 – Transmission – Center Shift
Group 40 – Synchronized Transmission and Transmission Oil Pump
Group 45 – Collar Shift Transmission and Transmission Oil Pump
Group 50 – Differential
Group 55 – Final Drives
Group 60 – Independent PTO Shafts
Group 65 – Continuous Running PTO
Group 70 – Front PTO
Group 75 – Front Wheel Drive u.j. Drive Shaft and Disk Clutch

SECTION 60 – STEERING SYSTEM AND BRAKES
Group 05 – Hydrostatic Steering
Group 10 – Steering Cylinder (without front wheel drive)
Group 15 – Power Steering
Group 20 – Manual Steering
Group 25 – Hydraulic Brakes
Group 30 – Handbrake
Group 35 – Hydraulic Trailer Brake

SECTION 70 – HYDRAULIC SYSTEM

Group 05 – Valves
Group 10 – Hydraulic Pumps
Group 15 – Rockshaft
Group 25 – Selective Control Valve (Spool Type)
Group 30 – Selective Control Valve (Poppet-Valve Type)
Group 35 – ISO Breakaway Couplers
Group 40 – ISO Quick Couplers
Group 45 – Remote Cylinder

SECTION 80 – MISCELLANEOUS

Group 05 – Front Axle
Group 10 – Front and Rear Wheels
Group 15 – AXLA Pickup Trailer Hitch
Group 20 – Height-Adjustable Trailer Hitch

SECTION 90 – OPERATORS STATION

Group 05 – Safe Handling of Refrigerants
Group 06 – Servicing Air Conditioning System
Group 07 – Compressor (up to tractor Serial No. 646 949L)
Group 08 – Compressor (from tractor Serial No. 646 950L)
Group 09 – Components of Air Conditioning System
Group 10 – Cab Ventilation and Heating (SG2 Cab)
Group 15 – Cab Ventilation and Heating (SG2 Low-Profile Cab)
Group 20 – Cab Ventilation and Heating (MC1 Cab)
Group 25 – Operators Seats
Group 30 – SG2 Cab
Group 35 – MC1 Cab
Group 40 – 2-Post Roll Guard
Group 45 – 4-Post Roll Guard
And More……
